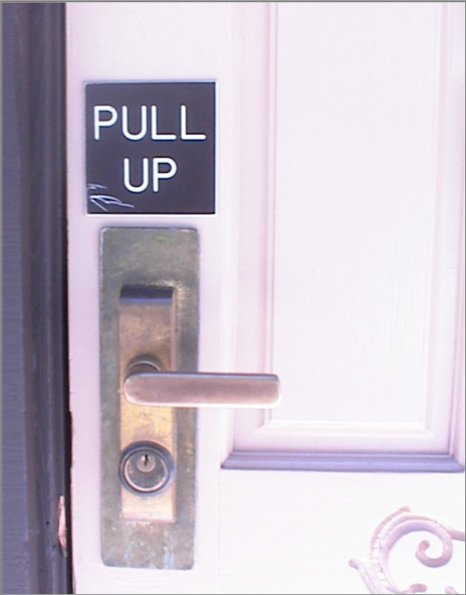

name: inverse layout: true class: center, middle, inverse --- # Interactive Application Design Jennifer Mankoff CSE 340 Spring 2019 --- layout: false # Hall of Shame/Hall of Fame (is this physical or virtual? Ubicomp!) |  ----|---- --- # Hall of Shame/Hall of Fame picture from airport about invisible disabilities... --- [//]: # (Outline Slide) .left-column[# Today's goals] .right-column[ - Metaphor - Creating good mental models - Design Tips for Interaction Design - Feedback - Feedforward ] --- .title[Metaphor] .right-column[ Lakoff & Johnson, Metaphors We Live By .quote[“...the way we think, what we experience, and what we do every day is very much a matter of metaphor.” ] ] --- .title[Metaphor] .right-column[ For example, until I had chickens I never noticed all the chicken metaphors in our language: .font-small[ - “A hen is only an egg's way of making another egg.” - Samuel Butler - “The key to everything is patience. You get the chicken by hatching the egg, not by smashing it.” - unknown - "Regard it as just as desirable to build a chicken house as to build a cathedral." - Frank Lloyd Wright - "A chicken in every pot" - 1928 Republican Party campaign slogan - "Don't have a pot to put it in" - 1928 Democratic Party response slogan - Nest egg - to save a little money each week - Scratching out a living - to earn enough to get by on - Don't count your chickens before they hatch - don't plan on an outcome before it actually happens. - Don't put all your eggs in one basket - don't plan on an outcome before it actually happens. - Feather your nest - saving for the future - Mother hen - very protective - Flew the coop - gone - Walking on eggshells- treading softly where certain people are concerned; trying not to upset someone - Like a chicken with it's head cut off - running around with no direction - You're chicken! - being afraid - Hard-boiled - tough attitude - Ruffle your feathers - something annoys you - No spring chicken - you're old. Plain and simple. - Hatch an idea - put a plan into motion - Pecking order - finding your place - Brood over it - to worry; to hover over a problem - Chicken scratch - poor handwriting - Stick your neck out - go to bat for someone else - Stuck in your craw - upset about something and won't verbalize what's going on inside you; carrying a grudge. - Bad egg - less than honest person; poor moral standards - In a stew - got yourself in trouble - Raise your hackle feathers - visibly annoyed - Nesting behavior- preparing a home (especially pregnant women just before a baby is due) - Empty nest syndrome - depression and loneliness when children leave home - Made from scratch - made from raw materials by hand ]] .left-column[  ] --- .title[Desktop Metaphor (Magic Cap)] .body[  Critique! ] ??? Unwieldy, Not great use of screen real estate Other? --- .title[Better option?] .right-column[ Can use metaphors to leverage existing conceptual models - Not really an attempt to simulate a real desktop - Leverages existing knowledge about files, folders, trash - A way to explain why some windows seem blocked ] .left-column[  ] --- .title[How else can we minimize errors?] ??? Key concept: mental models --- .left-column[ # Every system has at least 3 different models ] .right-column[ <div class="mermaid"> graph TD S[System Image: <br>Your Implementation ] --> |System Feedback | U[User Model: How the user thinks <br>the system works] D[Design Model: How you <br>intend the system to work ]-->S U -->|User Feedback | S </div> ] --- # Relating the Human and the Machine - Gulf of Execution and Gulf of Evaluation Gulf of execution is the user 'error' region (user requests function the __system DOESNT HAVE__) Gulf of evaluation is when the user __doesn't realize the system HAS a functionality__. --- .title[# Model of Mental Models] .body[  ] --- .title[# Model of Mental Models] .body[  ] --- .title[# Model of Mental Models] .body[  ] --- .title[# Model of Mental Models] .body[  ] --- .title[# Model of Mental Models] .body[  ] --- .title[# Model of Mental Models] .body[  ] ??? - Where are the gulf of evaluation and gulf of execution in this image? Gulf of execution is the user 'error' region (user requests function the __system DOESNT HAVE__), gulf of evaluation is when the user __doesn't realize the system HAS a functionality__. - How does undo help the user bridge them? --- .title[Design Tip #1: Consistency is Critical] .body[ What mental model error is this likely to create?  ] ??? Gulf of Evaluation --- # Causes of Gulf of Evaluation ??? - Hard to understand visual feedback - Poor use of colors - Bad layout, poor grouping - Unfamiliar display of information - Unfamiliar design patterns, or doesn’t follow convention - Forcing people to remember lots of things - Lack of feedback in response to inputs - Might not see visual updates - Can’t find info on screen - Might look same as unimportant - Irrelevant info on screen / important info missing --- # Causes of Gulf of Execution ??? - Unfamiliar devices and inputs - Don’t know what is possible - Unfamiliar GUI components - Solvable with experience - Unfamiliar interaction patterns - Also solvable with experience - Example patterns: Dialogs, Shopping Carts --- .title[Affordances ] .body[ Good Affordance| Bad Affordance ----|----  |  Well-designed objects have affordances - Clues to their operation that are readily apparent - Often visual, but not always (e.g., speech) - Allows and promotes certain actions ] ??? Opportunities to act which are readily apparent to the user ... and appropriate to the user’s abilities Form “affords” certain actions and makes that apparent --- .title[Design Tip #2: Use *Affordances* to minimize errors ] .body[ Action | Physical Affordance | Virtual Affordance | Minimal Design ----|----|----|---- Gripping |  |  Pushing |  | | Search | No Real World Equivalent ||  ] ??? Knurling: increases friction/affords gripping don't kneed to know the word to get it --- # Revisit: What is this an example of? (is this physical or virtual? Ubicomp!) |  ----|---- --- .title[Feedback] .body[ Response by the system to the actions of the user – Cause and effect Essential for forming mental models Makes “system state” visible Messenger Feedback | and | Gmail Feedback ----|----|---- || ] --- .title[Design Tip #3 Make the Conceptual Model Visible] .right-column[ Explicitly design a conceptual model Use affordance and feedback (and everything else you have) to reinforce it ] --- .title[Feed Forward] .right-column[ What will happen if you execute action - Ex. Web page mouseover - Ex. Word processing I-bar - Ex. Label on a button Help people predict what will happen - Need feedforward at all scales - GUI widgets will handle basic feedforward - Don’t forget feedforward for screens ] .left-column[  ] --- name: inverse layout: true class: center, middle, inverse --- # Undo Assignment Demo
